Redundant PLC Diesel Generator Control Panel
 Features Include:
  • Hot Standby Redundant PLC
  • Voltage Monitor Relays
  • Redundant DC Power Supplies
  • Manual and Automatic Circuit Breaker Control
 PLC Controlled Automatic Throw & Load Shed Schemes
 FEATURES INCLUDE:
  • Distributed & remote PLC I/O for breaker control & data monitoring
  • UPS for 24VDC control power
  • Remote Operator Interface for data viewing and manual control
  • Fiber optic converters for all Ethernet and RS-485 communications
  • Interface with Generator & ATS control systems

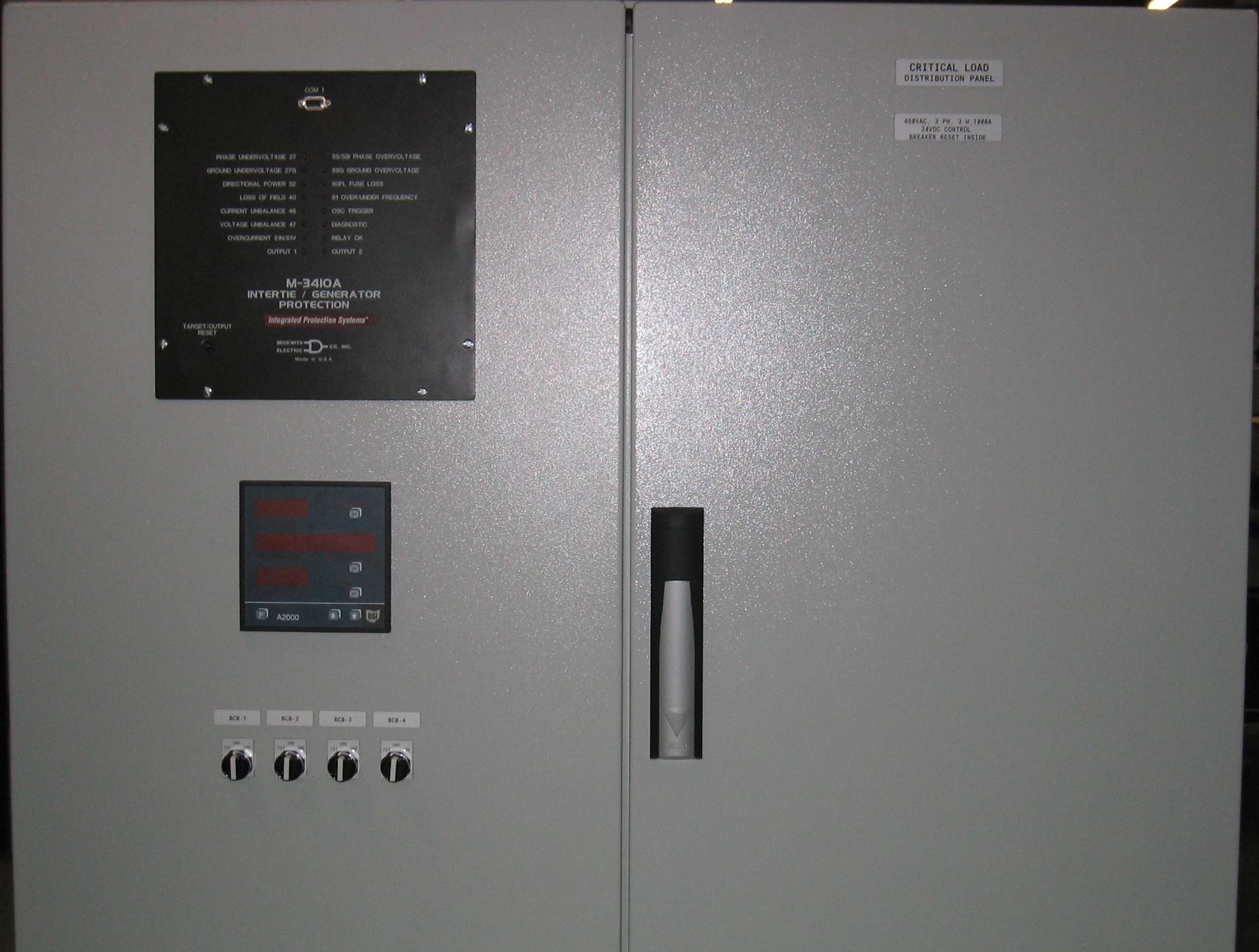

 Load Distribution Panel - 1200A bus - Utility & Generator Feeds

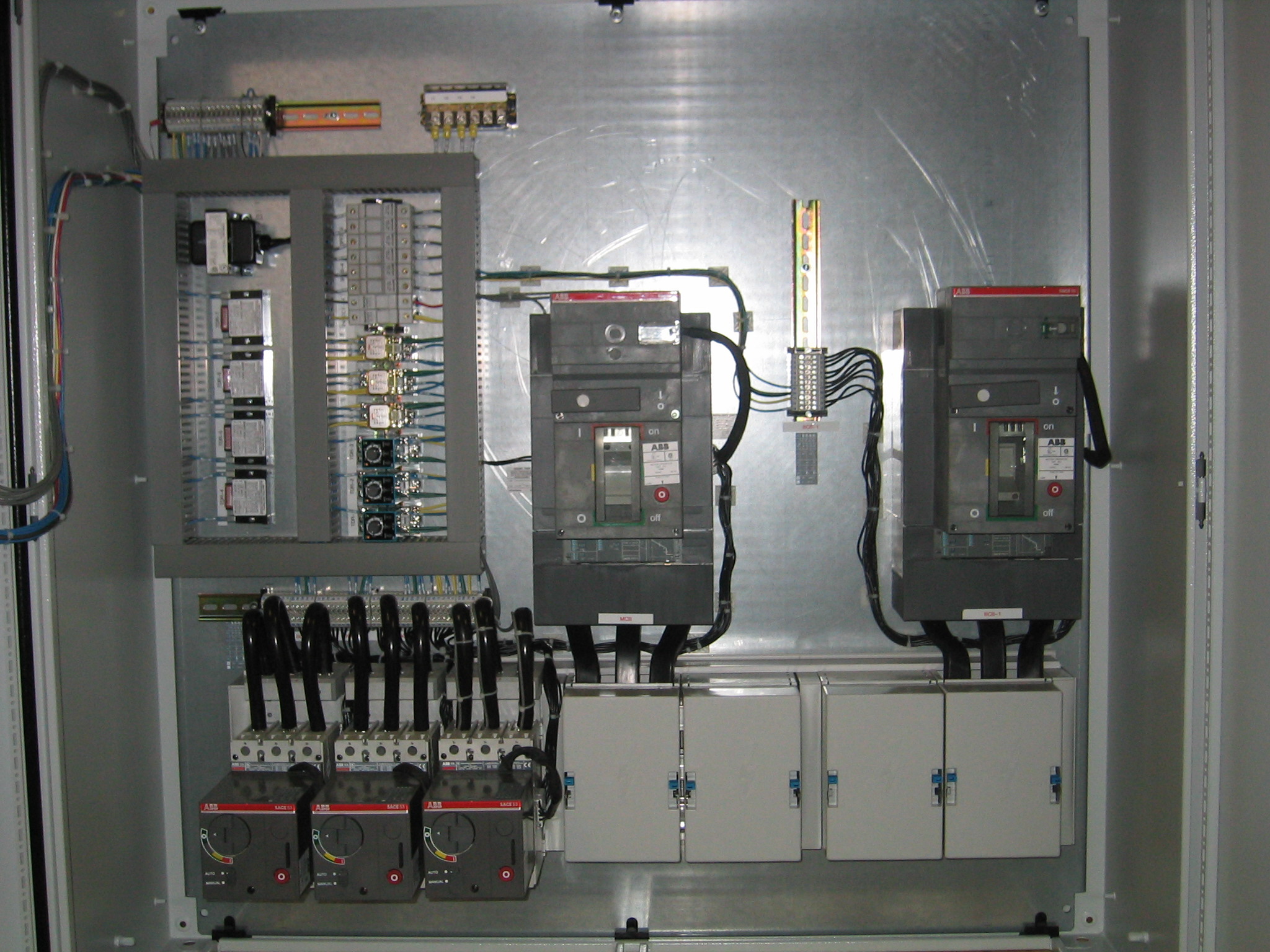

 Load Shed of Stored Energy & Motor Operated Circuit Breakers

 Circuit Breaker & Load Shed Status

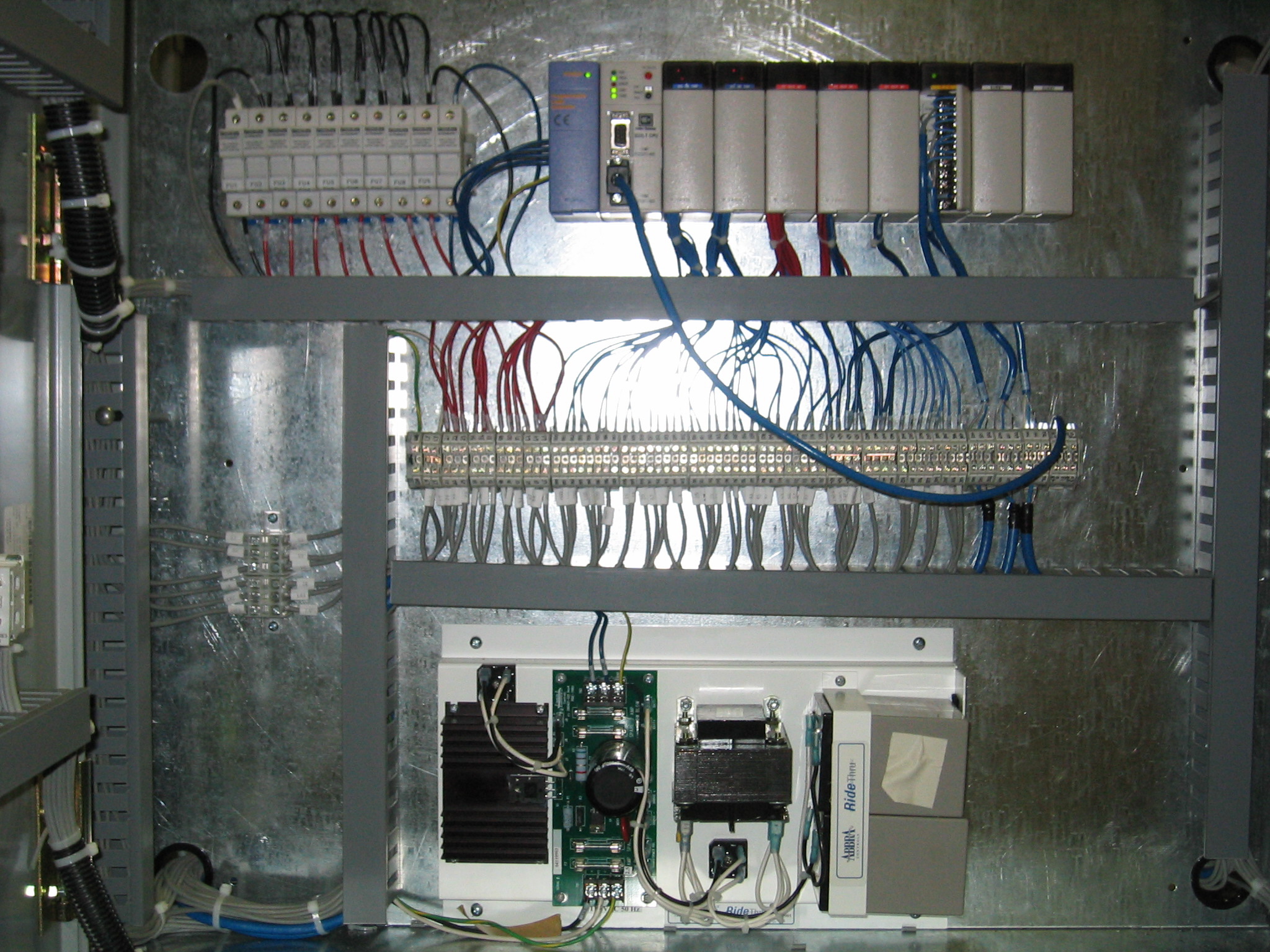

 PLC & UPS
